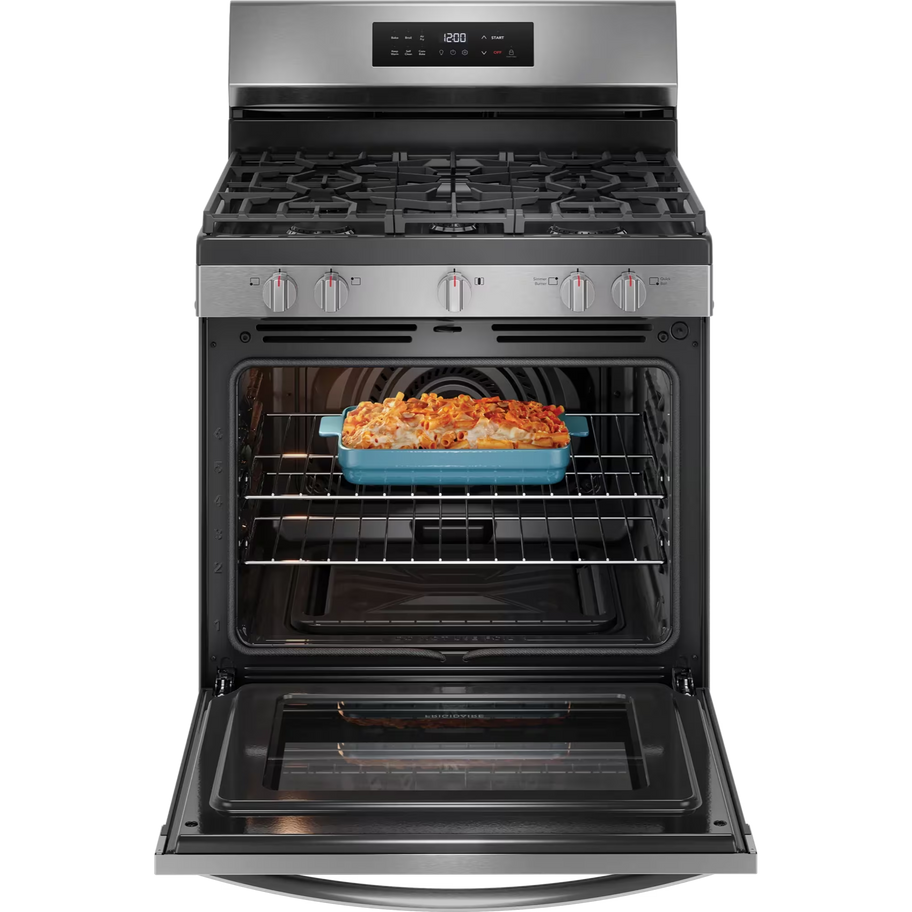

Frigidaire RANGE RC 30IN GAS SS - Stainless Steel - FCRG3083AS

Air Fry

Make healthier and delicious meals for your entire family - right in your oven.

Convection Bake

Get faster, more even baking results with our fan convection baking system.

Five Burner Cooktop

Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.

Quick Boil

Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

One-Touch Self Clean

A convenient 3 hour self clean cycle cleans your oven, so you don't have to.

Dishwasher Safe Burner Caps

Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

Continuous Edge-to-Edge Grates

Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.

Extra Wide Store-More™ Storage Drawer

Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

Capacitive Touch Control Panel

Easy to use, glass capacitive touch control panel.

Large Oven Capacity

Cook more at once with our large, 5.1 cu.ft. capacity oven.

Hidden Bake Element

Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.

Controls

Control Lock

Yes

Cooking Controls

Air Fry

Yes

Bake

Yes

Broil

Yes

Child Lock

Yes

Clock

Yes

Convection Bake

Yes

Delay Clean

Yes

Delay Start

Yes

Door Lock

Yes

Keep Warm

Yes

Kitchen Timer

Yes

Light

Yes

Off

Yes

Oven Light

Yes

Oven Lock

Yes

Preheat

Yes

Self Clean

Yes

Set Clock

Yes

Start

Yes

Temperature Display

Yes

Timer On / Off

Yes

Up / Down Arrow

Yes

User Preferences

Yes

Cooking Controls Function

Change between Continuous Bake Setting or 12-Hour Energy Saving Feature

Yes

Delayed Bake

Yes

Program Fahrenheit or Celsius

Yes

Silent Control Panel

Yes

Safety Certifications and Approvals

Certificate of Conformity

No

Heavy Metal Content

Yes

Mercury Content Indicator

No

Chromium Content Indicator

No

Cadmium Content Indicator

No

Lead Content Indicator

Yes

Other Heavy Metal Indicator

No

Cooktop

Cooking Surface Type

Gas

Grate Material

Cast Iron

Grate Quantity

3

Grate Style

Continuous

Sealed Burners

Yes

Total Number of Burners

5

Cooktop Performance

Right Front Element Burner

18000 BTU

Right Rear Element Burner

5000 BTU

Left Front Element Burner

14000 BTU

Left Rear Element Burner

10000 BTU

Center Rear Element Burner

10000 BTU

Dimensions and Volume

Height

46 3/4"

Width

30"

Depth

28 1/2"

Minimum Height

46 3/4"

Maximum Height

47 3/4"

Width

30"

Depth

26"

Depth With Door 90° Open

47 5/16"

Depth With Handle

28 1/2"

Oven Interior Height

17 5/8"

Oven Interior Width

25 3/16"

Oven Interior Depth

19 7/8"

Oven Capacity

5.1 Cu. Ft.

Carton Height

4.13 '

Carton Width

2.63 '

Carton Depth

2.47 '

Product Dimensions

Drawer

Drawer Handle Style

Integrated

Drawer Type

Storage

Electrical Specifications

Amps @ 120 Volts

12 Amps

Voltage Rating

120 V

Installation

Adjustable Leveling Legs

Yes

Power Cord Included

Yes

General Specifications

Country of Origin

United States - US

Shipping Weight

202 lbs

Product Weight

184 lbs

Prop 65 Label

Yes

Warranty - Labor

1 Year

Warranty - Parts

1 Year

AB-1200

Information available at frigidaire.com/en/ab1200

Oven

Bake Element

17000 BTU

Broil Element

1400 Watts

Broil Element Pass

6

Cleaning System

Yes

Convection

Yes

Convection Type

Fan

Number of Convection Fans

1

Number of Rack Positions

6

Oven Interior Color

Midnight Black

Oven Light Quantity

1

Oven Light Type

Halogen

Oven Light Watts

40 Watts

Rack Position Type

Embossed

Rack Type 1

Flat

Rack Type 1 Quantity

2

Display

Control Location

Rear

Display Interface Color

White

Display Type

Capacitive Touch

General

Product Line

Gas Range

Line of Business

Food Preparation

UPC

810143402209

GTIN

00810143402209
